COSMIC 39

*

TROPIDA's ribs are clasified for B & C CE class, according EU directives. BYREAU VERITAS certify TROPIDA is under ISO 9001/2015 . The designs of our ribs are patended by the ORGANIZATION OF INDUSTRIAL PROPERTY and are protected by the laws of Intellectual property.

AT FIRST GLANCE



Aiming to conquer the top of the super ribs, COSMIC 39 retains all the properties of offshore high-performance ribs, combining them with exceptional comfort and luxury.

GALLERY

SPECIFICATIONS

OVERALL LENGTH 11.75m
OVERALL WIDTH 3.36m
IN WIDTH 2.06m
HULL LENGHT 11.25m
HULL WIDTH 2.66m
HULL TYPE Deep V, Convex type, 3 ventilated steps ,Double Chines, ,double bow steps, Antidive system
TUBES MATERIAL HYPALON NEOPRENE PENNEL FLIPO ORCA 1670 dtex
FUEL TANK 2 X 350 lt.
WATER TANK 150 lt
PASSENGERS 12
PERFORMANCES max 80 knots
ENGINES Outboard engines from 2Χ250 ΗΡ to 3Χ 400 ΗΡ . Inboard engines from 2Χ 300 ΗΡ to 2Χ600 ΗΡ

DISCOVER MORE

HULL DESIGN

The need to maintain uncompromising performance in smooth comfortable cruising, required the use of the thtee vented steps, so that the vessel floats on a layer of water and air, and it took a lot of study to determine the amount of air passing under the hull through the ventilation channels.Great inportance was given to the shape and size of the chines to drive away the spray under every rough weather condition.



With a polyester bow section, and closed back of the tubes , reliability and airworthiness are achieved, since always in hi performance ribs the ends of the tubes at the stern are a sensitive point. The hard bow section, improves usability and of course protects the tubes.

DECK DESIGN

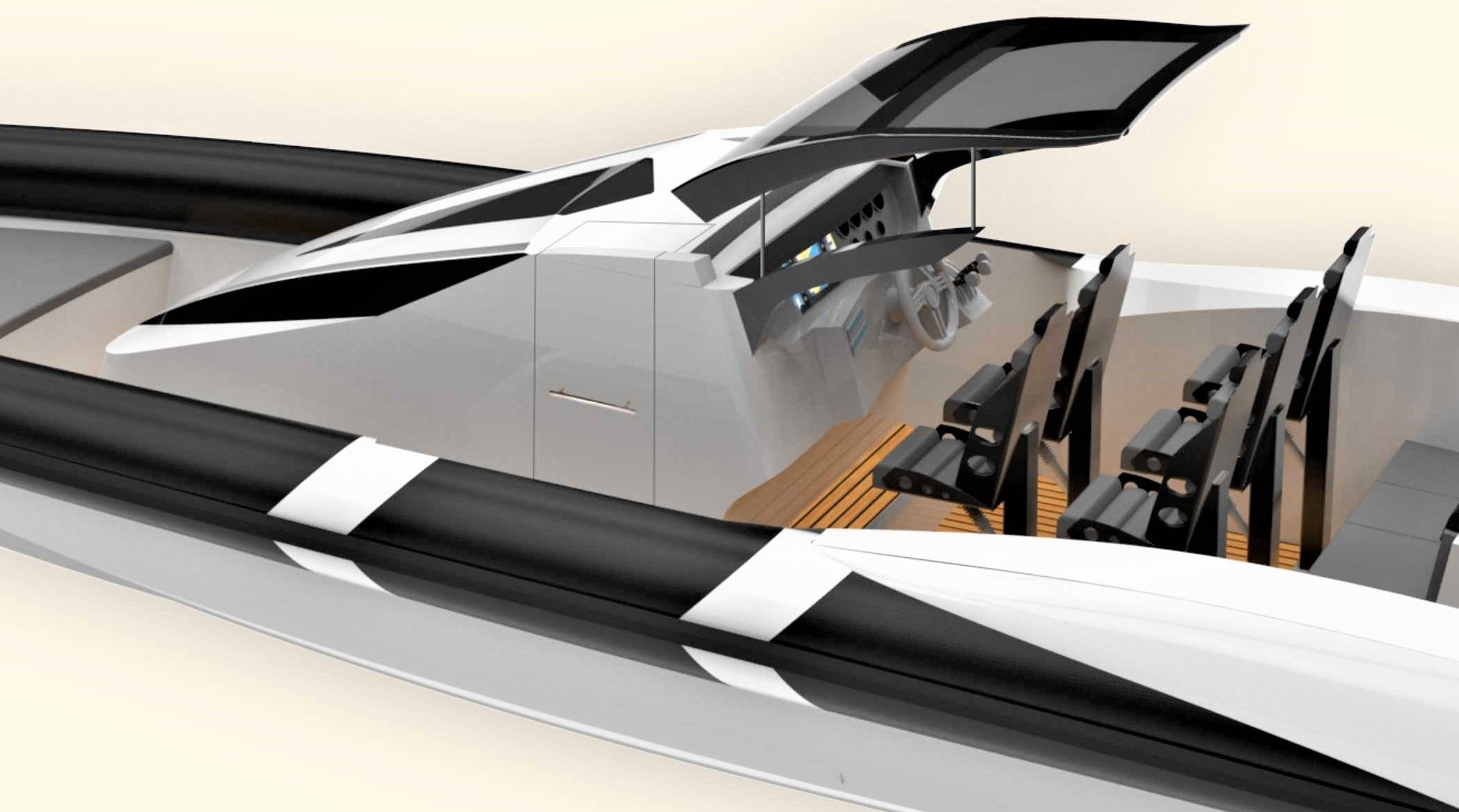

The impressive and special design of the deck harmoniously ties the aerodynamics and the usability of the interiors. The arched profile of the boat acts as an airplane wing, improving stability at high speeds, and the shape of the console achieves the best possible aerodynamics while allowing the creation of a fairly tall and spacious cabin.

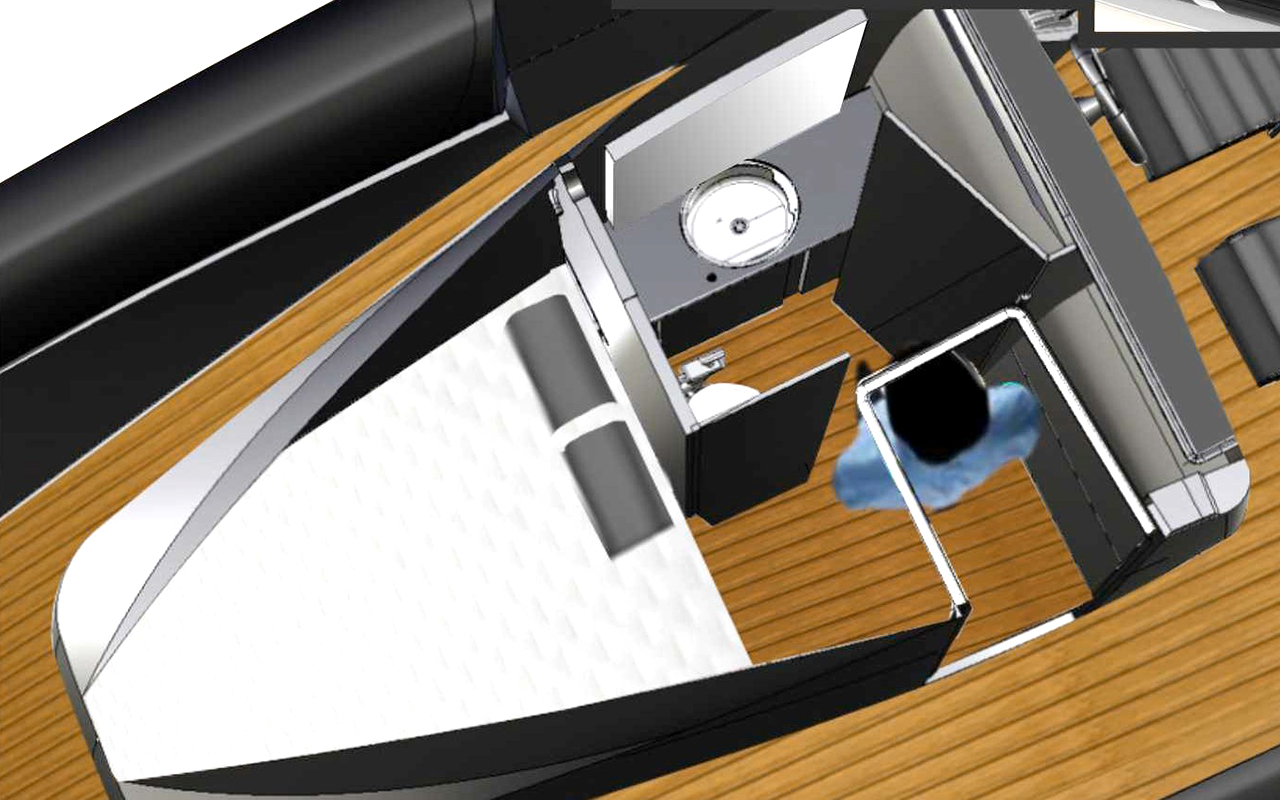

With an interior height of 1.85 m, toilet, sink, shower and closet, and a double bed measuring 1.50×1.95 m, large storage spaces, allows comfortable living for at least two people.

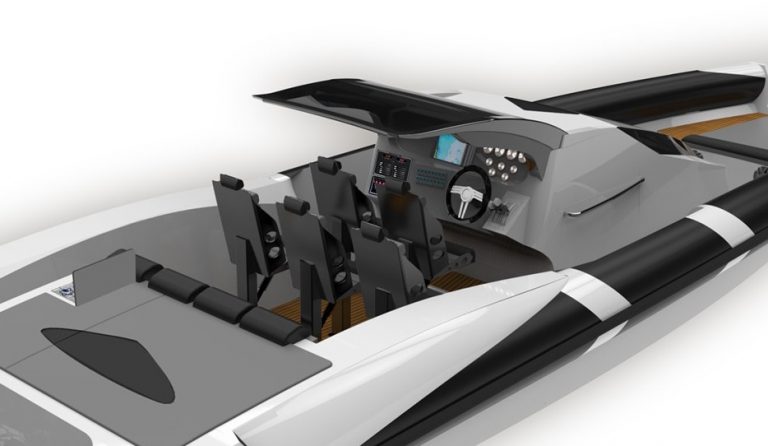

The seats, made entirely of anodized marine aluminum, allow for either a seated driving position or an upright position. The increased lateral support keeps the body stable in all conditions, both sitting and standing, while the suspension maintains comfort at high levels when the sitting driving position is selected.

The boat has a wet bar with sink and hob, electric refrigerator, folding table,  sundeck on the bow, hidden windlass on both the bow and the stern, and the innovative electric bow catwalk that makes it easy to get in and out of the boat.

GALLERY
